57/60mm Series 2 Phase

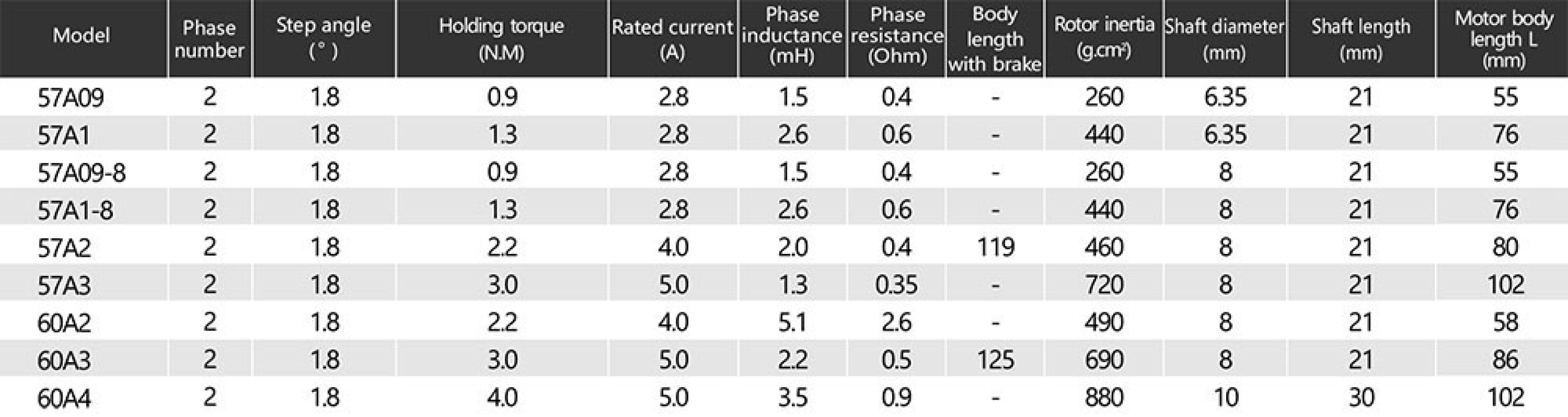

57/60mm Series 2 Phase - Stepper Motors

Step accuracy:±5%(synchronizing, no-load);
Temperature rise:80℃Max;
Ambient temperature:-10℃—+50℃;
Insulation resistance:100MΩmin.500VDC;
Voltage resistance:500VACfor one minute;
Radial runout:0.06Max.(450g-load);
Axial runout:0.08Max.(450g-load).

  • Pulse mode: monopulse/double-pulse
  • Signal level: 3.3-24V compatible; serial resistance not necessary for the application of PLC
  • Power voltage: 24-100V DC or 18-80V AC, 75V AC recommended
